Silkcarbon

Silkcarbon

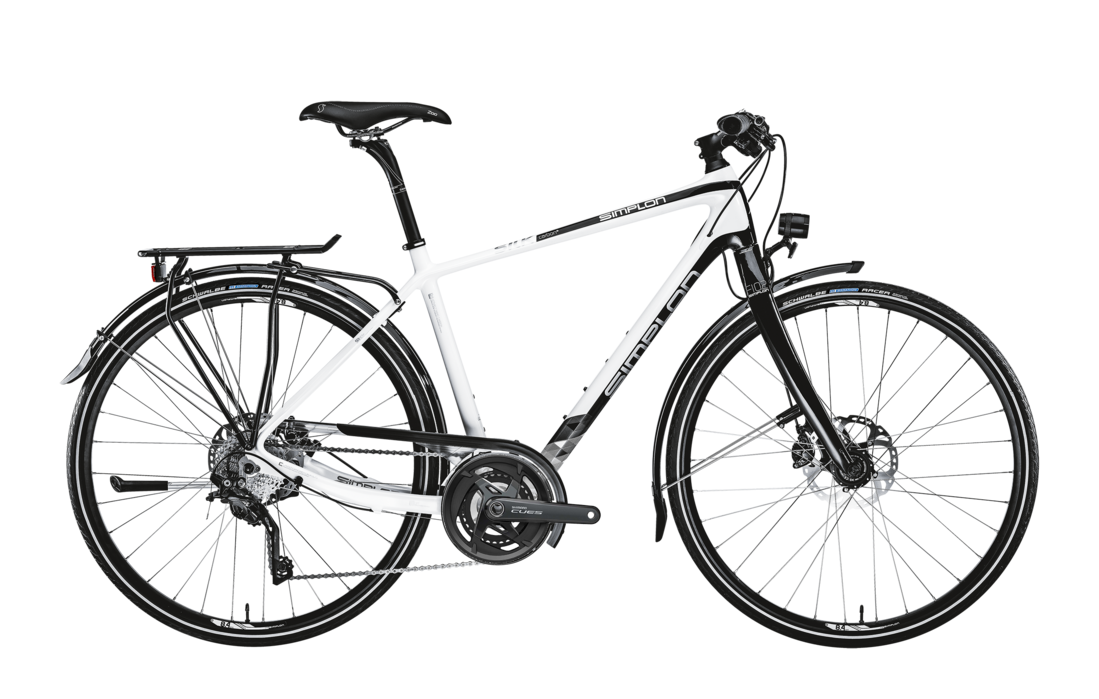

Easy cruising from A to B. The carbon made SILKCARBON, built according to the SIMPLON Comfort Concept, is the perfect trekking bike. Ultra-light, reliable and perfectly cushioned. Its reduced design is a subtle signal that it belongs in the premium class.

Men
Women
from
€ 2,699.00
from
CHF 2,699.00
City
4 from 6
Commute
3 from 6
Trekking
6 from 6
Clean, comfortable and super light.
Weight assembled bike
from 10,0 kg
System weight (bike + load)
up to 125 kg
Suspension fork
Optional: 65 mm
Frame material
Carbon
    Silkcarbon
    Light and strong

    If you’re looking for a lightweight bike, the SILKCARBON won’t disappoint: Its 27.2 mm carbon seatpost only weighs 200 grams while still being extremely sturdy.

    Well-conceived components

    Only about 500 grams: That’s how much the full-carbon fork weighs. The specially developed and intelligent comfort layup of the carbon fibres smooths out any kind of uneven terrain and gives the bike added comfort.

    A real jawdropper

    All cables are internally routed through the main frame and the chainstays. This not only looks sleek, but also protects the inner and outer cables and reduces the necessary operating forces.

    Everything ready

    On board as well: integrated 7’’ postmounts for the disc brakes, laminated eyelets for mudguards and a light system, and an internally routed electric cable for the hub dynamo.

    our multi-talent

    Versatility? That’s par for the course when it comes to the SILKCARBON. As an ultra-lightweight sports bike, as a standard trekking bike or as a cross bike: This two-wheeler is suitable for any kind of use. Another advantage: It comes in two versions – a low-entry version for women and a standard-top-tube version for men.

    Thanks to the bike configurator, you can create your bike entirely according to your wishes and needs!

    features

    features
    F10.2 FULL CARBON FORKS

    Especially developed and intelligent comfort lay up of the carbon fibres levels out bumps in the road. Series forks for the SILKCARBON model. Integrated 7" postmount disc brake mounts and eyes for mudguards and lights have been laminated in. Electric cable for the hub dynamo has beeen routed internally. Exceptionally high lateral stiffness. Optionally available on the SPOTLIGHT model with disc brakes.

    Geometry

    With SIMPLON’s geometry table, you can find the right bike for your individual needs. Because one thing’s for sure: The geometry is a deciding factor in how your bike feels when you ride it!

    sr.Table Scrollable
    SILKCARBON TREKKING 46/S 51/M 56/L 61/XL
    A Seat tube length 460 510 560 610
    B Top tube length 580 600 620 640
    C Head tube angle 69,5° 70° 70,5° 71°
    D Seat tube angle 73° 72,5° 72,5° 72,5°
    E Head tube length 130 150 170 190
    F Chainstay length 460 460 460 460
    G Wheelbase 1100 1100 1125 1140
    H Bottom bracket drop 75 75 75 75
    I Fork length 450 450 450 450
    K Fork offset (rake) 50 50 50 50
    M Stand over height 726 763 802 842
    S Stack 601 622 643 664
    R Reach 396 404 417 431
    STR* Stack to Reach 1,52 1,54 1,54 1,54

    All lengths in mm
    *STR: The higher the number, the more upright is the seating position.

    sr.Table Scrollable
    SILKCARBON TREKKING 41/S 46/M 51/L
    A Seat tube length 410 460 510
    B Top tube length 575 580 590
    C Head tube angle 70° 70° 70°
    D Seat tube angle 73° 73° 73°
    E Head tube length 125 125 140
    F Chainstay length 460 460 460
    G Wheelbase 1090 1095 1106
    H Bottom bracket drop 75 75 75
    I Fork length 465 465 465
    K Fork offset (rake) 50 50 50
    M Stand over height 597 598 600
    S Stack 612 612 626
    R Reach 388 393 398
    STR* Stack to Reach 1,58 1,56 1,57

    All lengths in mm
    *STR: The higher the number, the more upright is the seating position.

    Technical Details

    technologies

    The SILKCARBON in its Sport/Cross version is equipped with well-conceived and high-quality technology features – as should be the case for a high-end bike like this one.

    The beating heart of the Comfort Concept are the ultra-thin curved VIBREX® seatstays attached to the VIBREX® monostay. Special carbon fibres and their layup make the frame extremely flexible. Why’s that good? It ensures smooth riding on rough terrain – and that makes all the difference in terms of riding fun!
