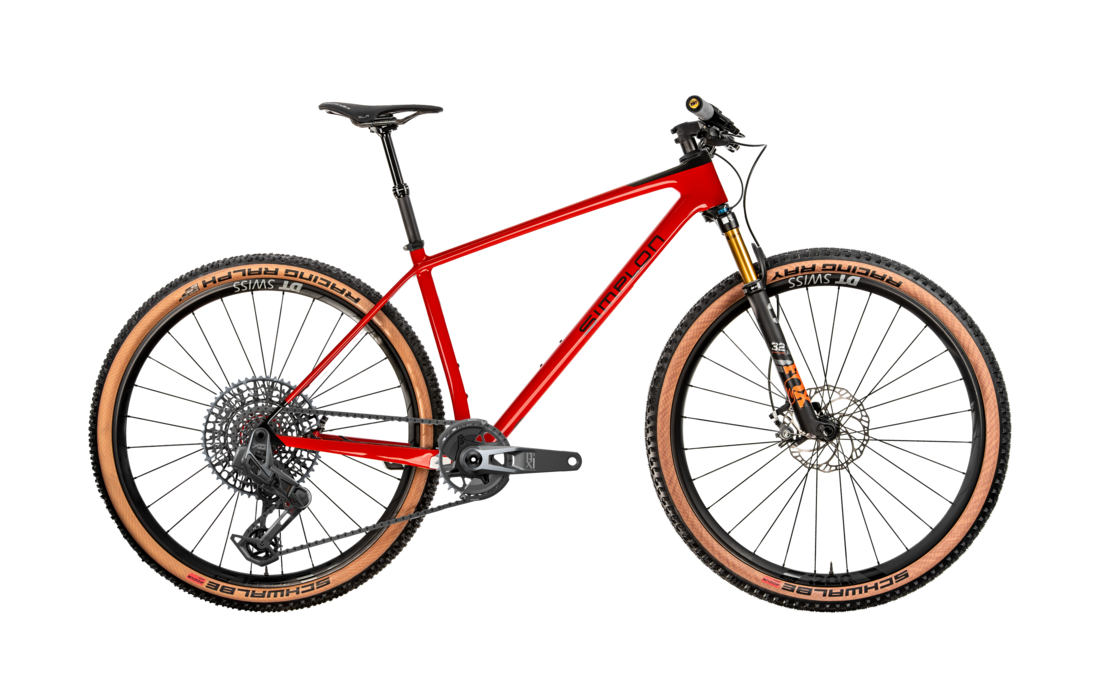

Razorblade
The RAZORBLADE is trimmed for lightweight, not wasting a gram on unnecessary details and converts muscle power directly and uncompromisingly into propulsion. Purist design and deliberately minimalist equipment! The recognisably perfect geometry, along with the 29" wheels, results in direct feedback and riding experience. Those familiar with SIMPLON know the RAZORBLADE: speed and agility combined with smooth running, high-quality materials and extra comfort with the vertical flex of the seat post.
Curious what the following configuration packages are all about?
Then take a look at our magazine article!
The summit climber
In Cosmic Red Glossy or Sand Matt: Racers and summit climbers can look forward to a stylish and clean look. The fully internal cable routing not only ensures a sleek design but also protects the cables.
When it comes to XC performance, no wishes are left unfulfilled: The RAZORBLADE is highly efficient when accelerating. The hardtail ensures maximum control both uphill and downhill. You’ll notice it from the very first second: This MTB loves the technical sections that come with demanding trails.
How do you prevent rides in muddy terrain from turning into a mud bath? With the chainstay shield that is located on the inside of the chainstay of this MTB and protects the frame.
GeometrY
The geometry table will help you find the perfect frame size. If you are unsure, our experts will be happy to help you with a free online consultation.
| 36/XS | 40/S | 43/M | 46/L | 53/XL | ||
|---|---|---|---|---|---|---|
| A | Seat tube length | 360 | 400 | 430 | 460 | 530 |
| B | Top tube horizontal | 560 | 591 | 603 | 626 | 648 |
| C | Head tube angle | 68,5° | 68,5° | 68,5° | 68,5° | 68,5° |
| D | Seat tube angle | 74,5° | 74,5° | 74,5° | 74,5° | 74,5° |
| E | Head tube length | 86 | 92 | 97 | 108 | 119 |
| F | Chainstay length | 425 | 425 | 425 | 425 | 425 |
| G | Wheelbase | 1074 | 1106 | 1118 | 1142 | 1166 |
| H | Bottom bracket drop | 60 | 60 | 60 | 60 | 60 |
| I | Fork length | 506 | 506 | 506 | 506 | 506 |
| K | Fork offset | 44 | 44 | 44 | 44 | 44 |
| M | Standover | 706 | 733 | 753 | 771 | 822 |
| R | Reach | 395 | 425 | 435 | 455 | 475 |
| S | Stack | 595 | 600 | 605 | 615 | 625 |
| STR | Stack to Reach* | 1,51 | 1,41 | 1,39 | 1,35 | 1,32 |
All lengths in mm
*STR: The higher the number, the more upright is the seating position.
Facts & Figures
| Max. Weight (Bike + Rider + Gear) | 125 kg |
|---|---|
| Fork Travel / Length / Offset | 100 / 506 / 44 mm |
| Rear Axle / Thru-Axle Length / Thread Pitch | 148 x 12 mm |
| Steckachse | 172 x M12 x 1.0 mm |
| Front Axle | 110 x 15 mm |
| Max. Tire Dimension | ETRTO 57-622 / Inches: 29 x 2.25 |
| Max. Brake Rotor Size | 180mm |
| Brake Mount | PM6 |
| Seat Post Diameter | 27,2 mm |
| Headset Standard | ZS56/ZS56 |
| Steuersatz | Acros AZA-642 |
| Bottom Bracket Standard | PF BB92 |
| Max. Chainring Size | 38 Teeth |
| UDH DERAILLEUR HANGER | Yes |
| Water Bottle Mounts | 2 |
| Bike Trainer Readiness | Yes |
| Child Trailer Readiness | No |
Innovative technologies on a high-end level – the RAZORBLADE is full of them and scores points across the board. Power Transfer is the SIMPLON technology that contributes to optimal acceleration. The bottom bracket and chainstays are made from only one piece, which results in increased stiffness. Comfort Concept and the flattened VIBREX® seat stays are an unbeatable technology team. With those two combined, the rider can tackle root carpets, steep passages and gravel roads while still enjoying maximum riding comfort.
All technologies on the RAZORBLADE at a glance!
Bike classification: ASTM category 3
