Rift :e

Agile, light-footed and built for range: the RIFT :e is an e-MTB designed for trail riding and long-distance touring.
With 140 mm of suspension travel, the Bosch Performance Line CX Gen5 motor and a long-range option offering up to 1,345 Wh of battery capacity, it’s ready for big alpine days, extended adventures and efficient trail fun.

from

€ 6,499.00

from

CHF 6,499.00

Touring

Trail

All Mountain

Enduro

E-Power

Print

Prices in EUR

Prices in CHF

print technologies and options

print geometry table

Find a Dealer

Ready for more elevation.

Frame material

Carbon

Max. system weight (bike + load)

150 kg

Travel (rear/front)

140 mm / 140 mm

Motor

BOSCH PL CX Gen5

Battery

600 / 800 Wh

Total bike weight

from 21,7 kg

Rift :e

Configure Bike

Find a Dealer

Battery out in seconds

The battery can be removed easily via the battery hatch. It is a rare feature on today’s e-MTBs and gives you maximum flexibility for charging and everyday use.

Clear view, no distractions

Easy control via the remote, clear information on the 2-inch Kiox 400c display in the top tube (in the Expert and Ultimate packages).

Ready for heavy-duty use

With a 150 kg system weight, the bike offers plenty of reserves for gear, luggage and demanding e-MTB rides. Stable on any terrain.

Dual protection, one solution

The combined foot-drop protector and chainstay guard reduces chain noise and prevents unwanted foot contact. Ideal for technical e-MTB terrain.

Cable routing that saves time

External cable routing simplifies servicing. Optionally, the cables can be routed internally through the headset for an even cleaner cockpit.

Mechanical by choice.

The best of both worlds: UDH derailleur hanger for maximum stability, combined with the proven reliability of a mechanical drivetrain.

CORE SELECTION: quick availability, short waiting times, start riding immediately

The CORE Line offers pre-configured focus models at fixed prices, put together by developers, experts, and athletes.

Trailspaß ohne Kompromisse

Some rides are planned short and simply turn into something longer. The RIFT :e is made for exactly those rides. For riders who value a light, agile feel but still want real range. A 600 or 800 Wh battery provides solid reserves, while a dual-battery setup or range extender keeps your options open when a spontaneous extra trail comes into play.

The balanced suspension platform and efficient geometry ensure the bike remains calm and controlled, even after many hours in the saddle. Thoughtful details such as double-row bearings at the pivot points, a service-friendly headset and uniform bearings throughout help keep maintenance effort low. Mounting points for accessories, plus preparation for a kickstand, mudguards and a luggage rack, add versatility without changing the character of the bike.

The RIFT :e is for those who love long rides, enjoy taking the occasional unplanned turn and are looking for an e-MTB that reliably supports them, even when the day stretches on.

Facts & Figures

Technical details

MAX. WEIGHT (BIKE+ RIDER + GEAR)	150 kg
fork travel / length / OFFSET	140/556/44 mm
shock size (EYE TO EYE LENGTH X STROKE)	185 x 55 mm
LOWER SHOCK HARDWARE	Trunnion
UPPER SHOCK HARDWARE	8 x 30 mm
REAR AXLE	148 x 12 mm
Thru-Axle	200 x M12 x 1.0 mm
FRONT AXLE	110 x 15 mm
MAX. TIRE DIMENSION	ETRTO: 65-622 / Inch: 29 x 2.60
MAX. BRAKE ROTOR SIZE	220 mm
brake mount	PM7
SEAT POST DIAMETER	31,6 mm
HEADSET STANDARD	ZS56/ZS66
Headset	ACROS AZA-639
MAX. CHAINRING SIZE	36T
DERAILLEUR HANGER	UDH
WATER BOTTLE MOUNTS	1
MOTOR	Bosch Performance Line CX
MAX. support level	340 % \| 400 %
MAX. torque	85 (100) Nm
MAX. power	600 (750) Watt
battery capacity	600 Wh \| 800 Wh
RANGE EXTENDER	250 Wh
Dual Battery	400 Wh \| 545 Wh
charge on bike	Yes
removable battery	Yes
Child trailer readiness	Yes
kickstand compatible	KSA18

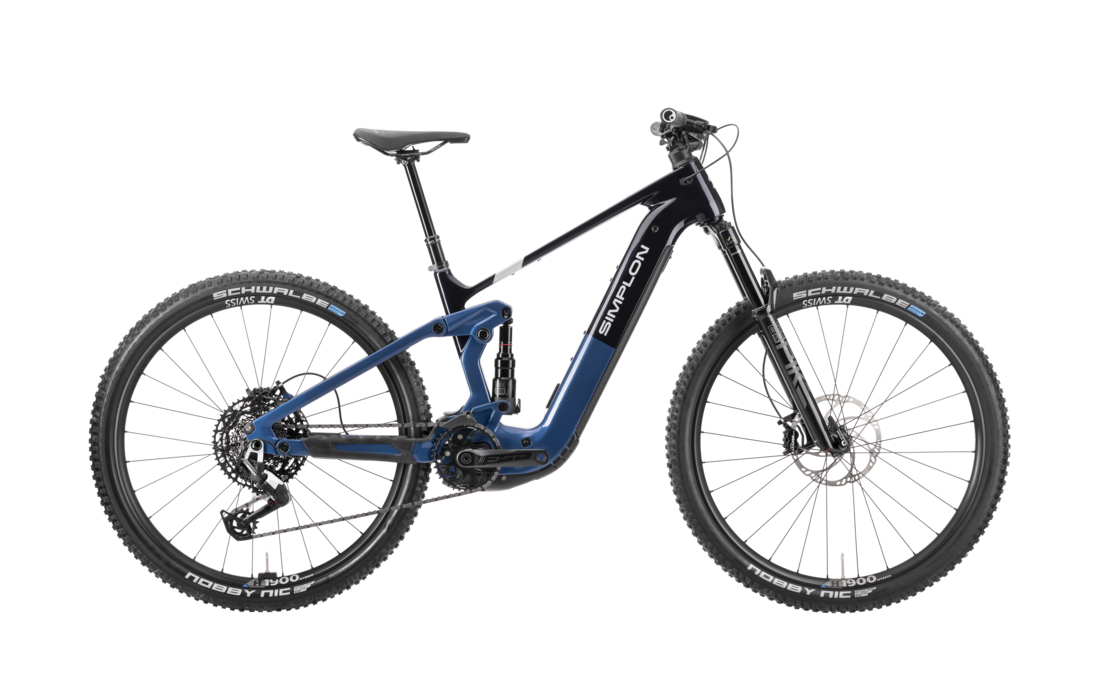

	The illustration above is an example. We reserve the right, provided that the type, suitability and purpose of the bicycle are not impaired, to replace individual parts with components of equal or higher value so that the bicycle is delivered differently.

Intended use

Bike classification: ASTM category 4
Learn more (PDF)

Bicycles and e-bikes which, in addition to being used in categories 1, 2 and 3, are also used on off-road tracks and challenging trails (S3+) as well as on difficult terrain, at speeds below 40 km/h, and which require a high level of technical skill.Jumps and drops are limited to 120 cm.
Jumps & drops: ≤ 120 cm
Skills: technical skills, practice & good bike control required
Bike type: All Mountain Bike, Enduro Bike

Geometry

The geometry table will help you find the perfect frame size.

		S	M	L	XL
A	Seat tube length	400	420	440	460
B	Top tube horizontal	568	597	617	637
C	Head tube angle	65°	65°	65°	65°
D	Seat tube angle*	78,2°	78,2°	78,2°	78,2°
D1	Seat tube angle	73,2°	73,2°	73,2°	73,2°
D2	Rail height	665	705	750	795
E	Head tube length	116	129	136	146
F	Chainstay length	445	445	450	455
G	Wheelbase	1222	1245	1272	1302
H	Bottom bracket drop**	31	31	31	31
I	Fork length	556	556	556	556
K	Fork offset	44	44	44	44
M	Standover	732	750	750	743
R	Reach	446	468	488	508
S	Stack	620	629	638	647
STR	Stack to Reach***	1,39	1,34	1,31	1,27

All lengths in mm

* The effective seat angle (D) indicates the actual sitting position on the bike, measured at a reference height (D2). Due to the offset of the seat tube in relation to the bottom bracket, the effective seat angle (D) does not correspond to the seat tube angle (D1). The effective seat angle (D) is therefore calculated from the intersection of the straight line, starting from the bottom bracket, with the height of the saddle rail (D2). The height of the saddle rail (D2) corresponds to typical reference sizes for the respective frame sizes.

** Left BB Drop with 29“ front and rear with Flipchip low, right BB Drop when 29“ in front and 27,5“ in rear with flip chip high

*** STR: Higher number indicates more upright sitting posture
