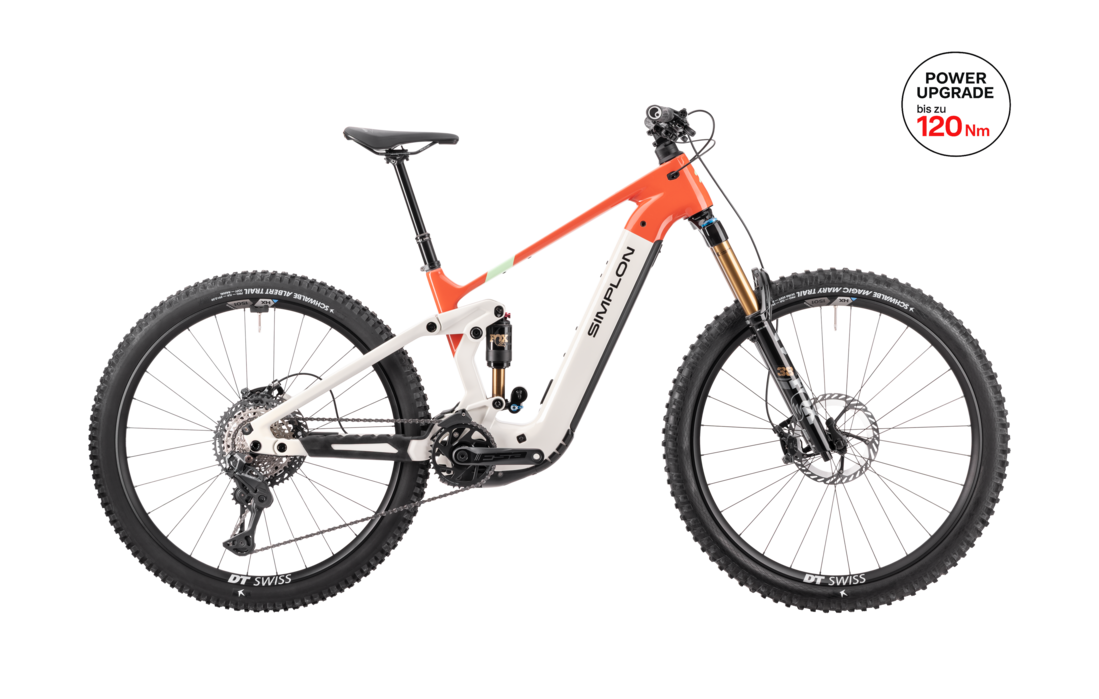

Rapcon :e

Versatile E-MTB for demanding enduro and all-mountain terrain. The RAPCON :e combines 160 mm of travel with the BOSCH CX Gen5 motor, a 600 or 800 Wh battery and an optional range extender. Modern geometry, mullet compatibility and confident control uphill and downhill.

from

€ 6,999.00

from

CHF 6,999.00

Touring

Trail

All Mountain

Enduro

E-Power

Print

Prices in EUR

Prices in CHF

print technologies and options

print geometry table

Find a Dealer

For adventures beyond the comfort zone

Frame material

Carbon

Max. system weight (bike + load)

150 kg

Travel (rear/front)

160 mm / 160 mm

Motor

BOSCH PL CX Gen5

Battery

600 / 800 Wh

Total bike weight

from 22,8 kg

Rapcon :e

Configure Bike

Find a Dealer

Cable routing that saves time

External cable routing simplifies servicing. Optionally, the cables can be routed internally through the headset for an even cleaner cockpit.

Clear view, no distractions

Easy control via the remote, clear information on the 2-inch Kiox 400c display in the top tube (in the Expert and Ultimate packages).

Battery out in seconds

The 800 Wh battery can be removed easily via the battery hatch. It is a rare feature on today’s e-MTBs and gives you maximum flexibility for charging and everyday use.

Fully dropped, fully free

The fully adjustable dropper post with 213 mm of drop (size M) gives you maximum freedom of movement and control on technical descents. Thanks to the rotatable actuator, this large drop can also be used in size S.

Always in the right gear

BOSCH eShift and the XT Di2 take shifting off your hands. With Autoshift, Freeshift and Pre Select included in the Ultimate Package, you can stay fully focused on the ride. Your flow leads, the drive follows.

Smooth when things get rough

The efficient 4-bar rear end and the 38 mm forks across all packages deliver comfort, support and a planted feel – no matter how rough the trail gets.

Dual protection, one solution

The combined foot-drop protector and chainstay guard reduces chain noise and prevents unwanted foot contact. Ideal for technical e-MTB terrain.

Ready for heavy-duty use

With a 150 kg system weight, the bike offers plenty of reserves for gear, luggage and demanding e-MTB rides. Stable on any terrain.

Downhill-ready

The external reservoir keeps the shock’s performance consistent – even on long, fast descents. More reserves, more control, more flow.

CORE SELECTION: quick availability, short waiting times, start riding immediately

The CORE Line offers pre-configured focus models at fixed prices, put together by developers, experts, and athletes.

Your E-MTB for pushing limits

When the terrain becomes demanding, the RAPCON :e shows what it was built for. The balanced suspension delivers confidence at speed while remaining efficient on technical climbs. Thanks to size-specific chainstays and tuned kinematics, every frame size feels right – controlled, precise and predictable, regardless of rider height.
With a system weight rating of up to 150 kg, the RAPCON :e stays composed even under heavy load, making it suitable for a wide range of riders. The powerful Bosch CX drive unit provides smooth, natural support and leaves room for real flow on the trail. In the Ultimate spec, the electronic SHIMANO Di2 drivetrain with Auto- and Freeshift even manages shift timing for you, so you can focus fully on the trail ahead.

Refined details complete the package: externally routed brake lines and cables simplify servicing and replacement, while double-row bearings in the rear triangle increase durability and stiffness. Practical solutions you notice in everyday use, designed to give you more time on the trail.

Facts & Figures

Technical details

MAX. weight (bike + rider + gear)	150 kg
fork travel / length / OFFSET	160/576/44 mm
shock size (eye to eye length X HUB)	205 x 62,5 mm
lower shock hardware	Trunnion
upper shock hardware	8 x 30 mm
Rear Axle	148 x 12 mm
Thru-Axle	200 x M12 x 1.0 mm
Front Axle Standard	110 x 15 mm
MAX. TIRE DIMENSION	ETRTO: 65-622 / Inch: 29 x 2.60
MAX. BRAKE ROTOR SIZE	220 mm
brake mount	PM7
SEAT POST DIAMETER	31,6 mm
HEADSET STANDARD	ZS56/ZS66
Headset	ACROS AZA-639
MAX. CHAINRING SIZE	36T
UDH DERAILLEUR HANGER	UDH
WATER BOTTLE MOUNTS	1
MOTOR	Bosch Performance Line CX
MAX. SUPPORT LEVEL	340 % \| 400 %
MAX. TORQUE	85 (100) Nm
MAX. power	600 (750) Watt
Battery capacity	600 Wh \| 800 Wh
RANGE EXTENDER	250 Wh
CHARGE ON BIKE	Yes
REMOVABLE BATTERY	Yes
CHILD TRAILER READINESS	Yes
KICKSTAND COMPATIBLE	KSA18
	The illustration above is an example. We reserve the right, provided that the type, suitability and purpose of the bicycle are not impaired, to replace individual parts with components of equal or higher value so that the bicycle is delivered differently.

Intended use

Bike classification: ASTM category 4
Learn more (PDF)

Bicycles and e-bikes which, in addition to being used in categories 1, 2 and 3, are also used on off-road tracks and challenging trails (S3+) as well as on difficult terrain, at speeds below 40 km/h, and which require a high level of technical skill.Jumps and drops are limited to 120 cm.
Jumps & drops: ≤ 120 cm
Skills: technical skills, practice & good bike control required
Bike type: All Mountain Bike, Enduro Bike

Geometry

The geometry table will help you find the perfect frame size.

		S	M	L	XL
A	Seat tube length	400	420	440	460
B	Top tube horizontal	573	597	618	640
C	Head tube angle	64°	64°	64°	64°
D	Seat tube angle*	77,5°	77,5°	77,5°	77,5°
D1	Seat tube angle	72,3°	72,3°	72,3°	72,3°
D2	Rail height	665	705	750	795
E	Head tube length	116	129	136	146
F	Chainstay length	445	445	450	455
G	Wheelbase	1231	1253	1281	1311
H	Bottom bracket drop**	25	25	25	25
I	Fork length	576	576	576	576
K	Fork offset	44	44	44	44
M	Standover	749	761	761	753
R	Reach	438	460	480	500
S	Stack	627	638	646	655
STR	Stack to Reach***	1,43	1,39	1,35	1,31

All lengths in mm

* The effective seat angle (D) indicates the actual sitting position on the bike, measured at a reference height (D2). Due to the offset of the seat tube in relation to the bottom bracket, the effective seat angle (D) does not correspond to the seat tube angle (D1). The effective seat angle (D) is therefore calculated from the intersection of the straight line, starting from the bottom bracket, with the height of the saddle rail (D2). The height of the saddle rail (D2) corresponds to typical reference sizes for the respective frame sizes.

** Left BB Drop with 29“ front and rear with Flipchip low, right BB Drop when 29“ in front and 27,5“ in rear with flip chip high

*** STR: Higher number indicates more upright sitting posture
