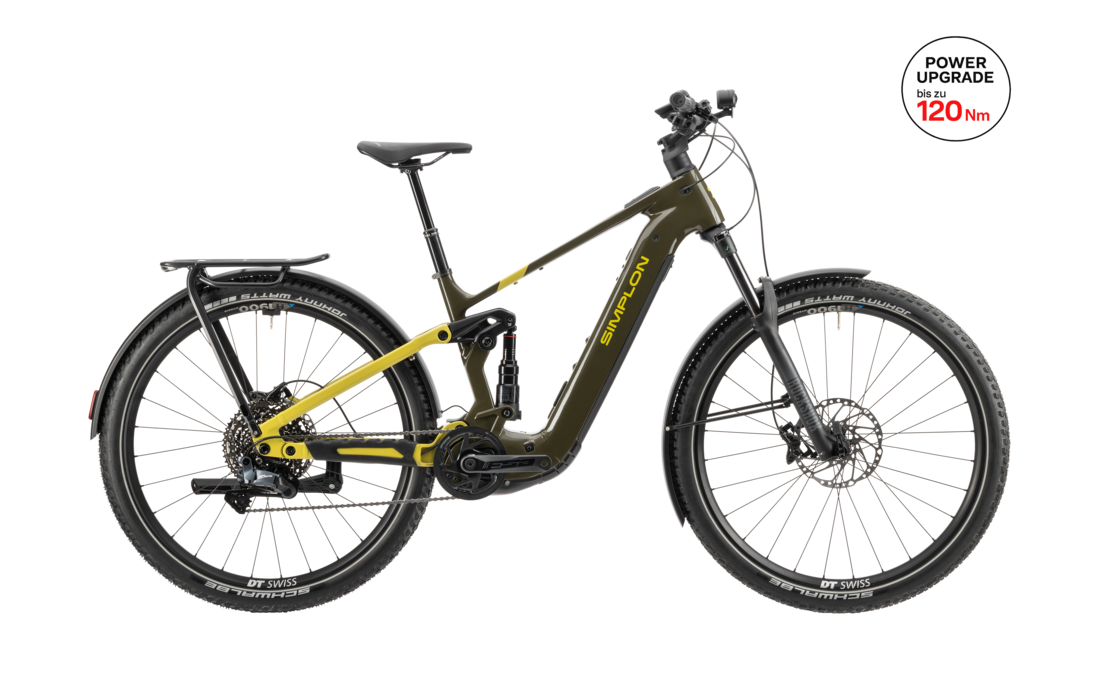

Stomp AL :e

Aluminium SUV e-bike for everyday use, travel and long-distance rides: the STOMP AL:e features the 5th-generation BOSCH e-system (CX/PX), a choice of 540 or 800 Wh battery, 140 mm of suspension travel, full factory equipment, and a system weight rating of up to 150 kg. High comfort, reliability and endurance for any journey.

from

€ 5,499.00

from

CHF 5,499.00

City

Commuting

Trekking

All Terrain

E-Power

Print

Prices in EUR

Prices in CHF

print technologies and options

print geometry table

Find a Dealer

Off-road companion and everyday hero.

Frame material

Aluminium

System weight (bike + load)

150 kg

Travel (rear/front)

140 mm / 140 mm

Motor

BOSCH PL PX /CX Gen5

Battery

540 / 800 Wh

Total bike weight

from 28,6 kg

Stomp AL :e

Configure Bike

Find a Dealer

Ready for city and weekend

With fenders, kickstand and a rear rack with pannier level, you get a fully equipped SUV e-bike for any route and any task.

A real eye-catcher

The exclusive gravity casting manufacturing process enables a three-piece aluminium main frame: high-quality look and stable handling.

Elegance over clutter

The system controller in the top tube blends seamlessly into the bike and manages the most important functions directly from the frame.

Your companion for big plans

With a system weight of 150 kg and a robust aluminium frame, the STOMP AL :e is designed for heavy loads and daily use, including approval for child trailers, so that every trip becomes a shared experience.

Automatic gear shifting. Relaxed riding.

With the automatic SHIMANO derailleur gear system in the Advanced package, you'll always be in the right gear. You ride, the bike does the rest.

CORE SELECTION: quick availability, short waiting times, start riding immediately

The CORE Line offers pre-configured focus models at fixed prices, put together by developers, experts, and athletes.

Tarmac is just one option

The STOMP AL:e feels most at home where routes are uneven and varied. Forest tracks, paths and gentle trails suit it just as well as gravel sections or broken road surfaces. This versatility defines its character: it is designed for both long-distance riding and everyday use.
A comfort-focused geometry, flexible battery choice with a dual-battery option of up to 1,345 Wh, and composed handling ensure that even long days in the saddle remain relaxed. The powerful Bosch drive unit delivers smooth, dependable support, creating a ride feel that inspires confidence wherever the journey leads.
To keep this E-SUV fully prepared for any ride, it comes fully equipped as standard with an integrated lighting system, luggage rack and mudguards. In the Advanced specification, the automatic CUES Di2 shifting system takes care of gear changes, adjusting ratios independently to match speed and riding conditions. The STOMP AL:e is not a specialist for a single discipline. It is your companion for everything in between.

Facts & Figures

Technical details

MAX. weight (bike + rider + gear)	150 kg
fork travel / length / OFFSET	140/556/51 mm
shock size (EYE TO EYE LENGTH X STROKE)	185 x 55 mm
LOWER SHOCK HARDWARE	Trunnion
UPPER SHOCK HARDWARE	8 x 30 mm
REAR AXLE	148 x 12 mm
Thru-Axle	200 x M12 x 1.0 mm
FRONT AXLE	110 x 15 mm
MAX. TIRE DIMENSION	ETRTO: 65-622 / Zoll: 29 x 2.60
MAX. BRAKE ROTOR SIZE	220 mm
brake mount	PM7
SEAT POST DIAMETER	31,6 mm
HEADSET STANDARD	ZS56/ZS66
Headset	ACROS AZA-639
MAX. CHAINRING SIZE	36T
DERAILLEUR HANGER	UDH
WATER BOTTLE MOUNTS	1
MOTOR	Bosch Performance Line CX /PX
MAX. support level	340 (400) %
MAX. torque	85 (100) Nm / 85 (90) Nm
MAX. power	600 (750) Watt / 600 (700) Watt
battery capacity	540 Wh \| 800 Wh
RANGE EXTENDER	250 Wh
Dual Battery	400 Wh \| 545 Wh
charge on bike	Yes
removable battery	Yes
Child trailer readiness	Yes
kickstand compatible	KSA18
	The illustration above is an example. We reserve the right, provided that the type, suitability and purpose of the bicycle are not impaired, to replace individual parts with components of equal or higher value so that the bicycle is delivered differently.

Intended use

Bike classification: ASTM category 2
Learn more (PDF)

Bicycles and e-bikes that are used on unpaved roads, gravel roads, forest roads and light trails (S0) with moderate ascents and descents in addition to category 1 use. Under such conditions, contact with bumpy terrain and repeated loss of tire contact with the ground may occur. Jumps and drops are limited to 15 cm or less.
Jumps & drops: ≤ 15 cm
Skills: moderate riding technique required
Bike type: Trekking Bike, Gravel Bike

DEALER SEARCH

With a few clicks you will get to the SIMPLON dealer of your choice!

Search now

Geometry

The geometry table will help you find the perfect frame size.

		S	M	L	XL
A	Seat tube length	400	420	440	460
B	Top tube horizontal	568	595	617	637
C	Head tube angle	65°	65°	65°	65°
D	Seat tube angle*	78°	78°	78°	78°
D1	Seat tube angle	73°	73°	73°	73°
D2	Rail height	665	705	750	795
E	Head tube length	116	129	136	146
F	Chainstay length	446	446	446	446
G	Wheelbase	1214	1243	1278	1302
H	Bottom bracket drop**	32	32	32	32
I	Fork length	556	556	556	556
K	Fork offset	44	44	44	44
M	Standover	732	750	750	743
R	Reach	446	468	488	508
S	Stack	620	629	638	647
STR	Stack to Reach***	1,39	1,34	1,31	1,27

All lengths in mm

* The effective seat angle (D) indicates the actual sitting position on the bike, measured at a reference height (D2). Due to the offset of the seat tube in relation to the bottom bracket, the effective seat angle (D) does not correspond to the seat tube angle (D1). The effective seat angle (D) is therefore calculated from the intersection of the straight line, starting from the bottom bracket, with the height of the saddle rail (D2). The height of the saddle rail (D2) corresponds to typical reference sizes for the respective frame sizes.

** Left BB Drop with 29“ front and rear with Flipchip low, right BB Drop when 29“ in front and 27,5“ in rear with flip chip high

*** STR: Higher number indicates more upright sitting posture
