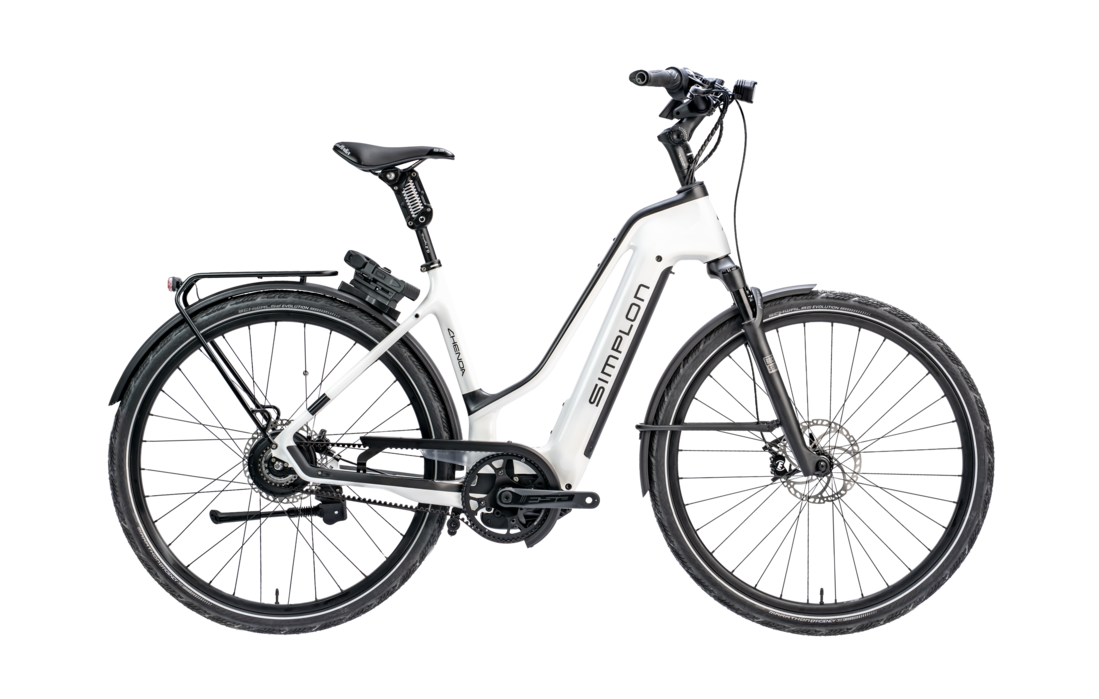

Chenoa Bosch CX
Since the introduction of the CHENOA family lightweight e-bikes are no longer wishful thinking but a dream come true. The highly efficient carbon frame impresses with its low weight, riding quality and very attractive design. The 625 Wh battery is integrated elegantly into the down tube and supplies the powerful Bosch motor with plenty of energy.


Details
Just like the Uni version, the Chenoa Bosch CX is an incredibly versatile trekking e-bike. It really plays to its strengths on long tours – but for the daily trip to work or for running errands, the trekking bike by Simplon is perfectly suited as well. What else does the trekking e-bike have to offer? Let’s find out!
Features
• The Chenoa Bosch CX boasts plenty of power and endurance. Mainly responsible for that: the Drive Unit Performance CX by Bosch. With up to 75 Nm of torque, it ensures pure riding fun on both short and longer tours.
• In addition to the powerhouse of a drive unit, the beautifully integrated battery in the down tube supplies 625 Wh of pure power. It can be removed easily for charging.
• The ultra-lightweight carbon frame ensures maximum stiffness during acceleration alongside a high level of sitting comfort.
• Another benefit: the optional belt drive. Compared to a chain drive, it significantly decreases maintenance needs and at the same time increases the trekking e-bike’s longevity.
• The integrated Vario seatpost, which can be lowered and raised at the push of a button, makes mounting and dismounting of the bike a lot easier.

Technology
The innovative technology features by Simplon can be found at the Chenoa Bosch CX as well:
Based on the Smart Headset technology, cables run through the specially designed headset – which gives it a super sleek look! Additionally, the cables are protected that way.
With the Power Transfer technology, the Chenoa offers another amazing feature: bottom bracket and chainstays are made from one piece, which significantly increases the bike’s stiffness.
- Advanced Internal Cable Routing more information
- Belt Drive more information
- Internal Battery more information
- Steering Stop more information
- Trailer-Ready more information
- Asymmetric Chainstays more information
- Comfort Concept more information
- Hollow Carbon Dropouts more information
- Hot Melt Carbon more information
- HPMC more information
- Power Transfer more information
- Smart Headset more information
- UD Carbon more information
- Vibrex more information

Options
Configurate the Chenoa Bosch CX based on your needs and wishes! Simplon gives you plenty of options for upgrades.
If you’d like to ride your trekking e-bike on longer tours through nature and you’ve got weighty luggage with you: A heavy-duty rack and bottle cage can be optionally installed on the Chenoa.
Another bonus feauture: the dual-battery option. In addition to the 625-Wh battery, an external 500-Wh battery can be mounted on the rear rack – for even more propulsion power on longer tours.
-
Ergonomic cockpit
-
Braking systems
-
Lighting system
-
Baggage handlers
-
Mudguards
-
Seat post
-
Frame lock
-
Tires
-
Belt drive
-
Bordcomputer

Geometry table
Does the trekking e-bike fit your proportions and riding style? Which frame sizes are available? The geometry table helps you find the right e-bike for your individual needs.
Chenoa Bosch CX | S (46) | M (51) | L (56) | XL (61) |
---|---|---|---|---|
A | 460 | 510 | 560 | 610 |
B | 575 | 590 | 610 | 628 |
C | 70° | 70° | 71° | 71° |
D | 73° | 73° | 73° | 73° |
E | 145 | 145 | 165 | 185 |
F | 475 | 475 | 475 | 475 |
G | 1108 | 1123 | 1132 | 1148 |
H | 75 | 75 | 75 | 75 |
I | 460 | 460 | 460 | 460 |
K | 51 | 51 | 51 | 51 |
M | 731 | 733 | 755 | 760 |
S | 626 | 626 | 649 | 668 |
R | 384 | 399 | 411 | 421 |
STR* | 1,63 | 1,57 | 1,58 | 1,59 |
A | Seat tube length mm |
---|---|
B | Top tube length |
C | Head tube angle |
D | Seat tube angle |
E | Head tube length |
F | Chainstay length |
G | Wheelbase |
H | Bottom bracket drop |
---|---|
I | Fork length |
K | Fork offset (rake) |
M | Stand over height |
R | Reach |
S | Stack |
STR* | Stack to Reach |
*STR: The higher the number, the more upright is the seating position.
Trailer which is mounted on the rear wheel is allowed for the following models: KAGU BOSCH CX 275, SPOTLIGHT BOSCH CX, KAGU BOSCH UNI 275, KAGU NEODRIVES
Chenoa Bosch CX | XS (41) | S (46) | M (51) | L (56) |
---|---|---|---|---|
A | 410 | 460 | 510 | 560 |
B | 570 | 580 | 590 | 605 |
C | 69° | 70° | 70° | 71° |
D | 73° | 73° | 73° | 73° |
E | 140 | 145 | 155 | 165 |
F | 475 | 475 | 475 | 475 |
G | 1113 | 1113 | 1123 | 1127 |
H | 75 | 75 | 75 | 75 |
I | 460 | 460 | 460 | 460 |
K | 51 | 51 | 51 | 51 |
M | 487 | 490 | 494 | 498 |
S | 617 | 626 | 635 | 649 |
R | 381 | 381 | 396 | 406 |
STR* | 1,62 | 1,61 | 1,61 | 1,60 |
A | Seat tube length mm |
---|---|
B | Top tube length |
C | Head tube angle |
D | Seat tube angle |
E | Head tube length |
F | Chainstay length |
G | Wheelbase |
H | Bottom bracket drop |
---|---|
I | Fork length |
K | Fork offset (rake) |
M | Stand over height |
R | Reach |
S | Stack |
STR* | Stack to Reach |
*STR: The higher the number, the more upright is the seating position.
Trailer which is mounted on the rear wheel is allowed for the following models: KAGU BOSCH CX 275, SPOTLIGHT BOSCH CX, KAGU BOSCH UNI 275, KAGU NEODRIVES

A trekking e-bike for diverse use
The carbon trekking e-bike Chenoa Bosch CX. Discover pure versatility!
