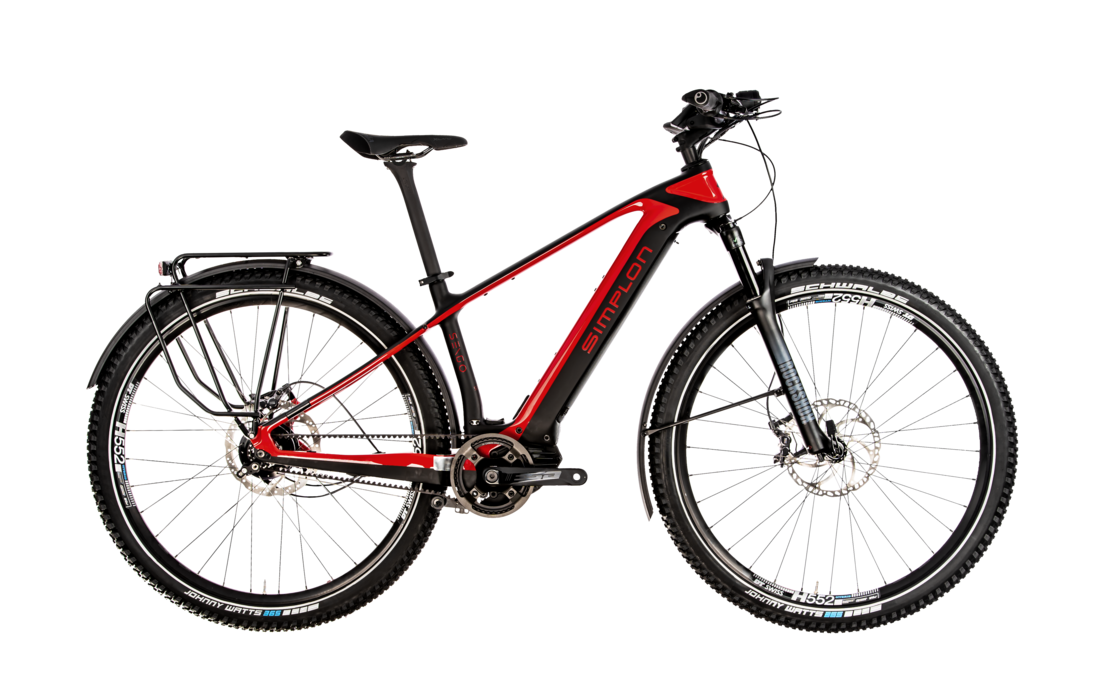

Sengo SUV Pmax

Sengo SUV Pmax

SENGO SUV PMAX is the name of the SUV among SIMPLON’s E-Mountainbikes. The perfectly shaped carbon frame offers the best mix of weight, stability, riding pleasure and design. The battery capacity can be expanded to up to 1125 Wh and thus offers enough energy even for the longest tours. If required, a large number of options are available, opening up unprecedented versatility.

from
€ 5,299.00
from
CHF 5,299.00
City
2 from 6
Commuting
4 from 6
Trekking
4 from 6
All Terrain
5 from 6
E-Power
6 from 6
The SUV among the bikes! With Mudguard, luggage rack and light.
Frame material
Carbon
Max. system weight (bike + load)
140 kg
Fork travel
100 mm
Motor
BOSCH PL CX GEN4
Battery
625 WH
Total bike weight
from 20,41 kg
    Sengo SUV Pmax
    Perfectly integrated

    Cables and wires, which have to pass through the frame, run through the special headset

    Battery or bottle cage?

    Another smart feature is the convenient quick-change bottle cage that’s integrated in the dual-battery function. All you need to do is click it into place on the Bosch mount.

    Extra Power

    Thanks to the dual-battery option with external 500-Wh battery on the down tube, the battery capacity can be extended to 1,125 Wh. The latest Bosch CX drive unit gives it the necessary super boost.

    Low-maintenance and long-lasting

    Belt instead of chain: That’s the option whereby you can use a belt drive in combination with a Rohloff gear hub. Stainless steel protectors on the inside reliably protect the chain stays from damages to the paint.

    An eye-catcher

    Lightweight, stiff and beautiful: That’s what best describes the carbon frame on the SENGO SUV PMAX.

    A CARBON E-MTB FOR EVERY TERRAIN

    Who’s the E-MTB hardtail perfect for? And which special features set the Sengo Pmax apart from its competition? Let’s find out! Well secured roads, forest roads or dirt roads are your preferred types of terrain? And moderate downhill trails are sometimes on the menu as well? Then we wholeheartedly recommend the Sengo SUV Pmax. The lightweight for everyday use only weighs in at 20 kg – depending on the add-ons. The e-hardtail is also perfect for extended (multi-)day tours.

    features

    features
    Smart Headset

    All cables run from the handlebar through the headset into the frame interior and provide a tidy look. The shorter cables also save weight and don't come into the enclosure in front of the handlebars.

    Facts & Figures

    Technical details
    MAX. weight (bike + rider + gear) 140 kg
    fork travel / length / OFFSET 100 / 506 / 44 mm
    rear axle / thru-axle length / Thread 148 x 12 mm / 171 x M12 x 1.5 mm
    front axle 110 x 15 mm
    MAX. tire dimension ETRTO: 65-622 / Inches: 29*2.60
    MAX. brake rotor size 203 mm
    Brake mount PM7
    seat post diameter 31,6 mm
    headset standard AZA-636
    MAX. chainring size 34 Teeth
    UDH DERAILLEUR HANGER No
    water bottle mounts 1
    MAX. water bottle size Configuration Dependent
    MOTOR Bosch Performance Line CX
    MAX. support level 340%
    MAX. torque 85 Nm
    MAX. power 600 Watt
    battery capacity 625 Wh
    RANGE EXTENDER 250 Wh
    charge on bike Yes
    removable battery Yes
    child trailer readiness Yes
    kickstand compatible KSA40
    technologies

    SIMPLON is known for its innovative technology on its high-end bikes. And the team of tinkerers at their workshop didn’t skimp on them when it comes to the SENGO PMAX either.

    The integrated Smart Headset gives the bike a clean look. Cables for the brakes and gears run through the special headset down into the frame – preventing a mess of tangled cables. But that’s not all: The Advanced Internal Cable Routing also ensures that all cables run both on the inside of the main frame and the rear. That way all cables are protected.

    Intended use

    Bike classification: ASTM category 3
    Learn more (PDF)

    • Bicycles and e-bikes which, in addition to use in categories 1 and 2, are also used on rough paths, undeveloped tracks and moderate trails (S1-S2) and which require technical skills. Jumps and drops are limited to 60 cm.
    • Jumps & drops: ≤ 60 cm
    • Skills: technical skills & practice required
    • Bike type: Cross-Country Bike, Trail Bike

    Test Reports

    Sengo Pmax tested by Elektrorad

    The magazine Elektrorad (radfahren.de) has tested E-MTB novelties from various suppliers – among them, the Sengo Pmax by Simplon. Their verdict: "very good".

    Read more!

    Geometry

    The geometry table will help you find the perfect frame size. If you are unsure, our experts will be happy to help you with a free online consultation.

    sr.Table Scrollable
    Sengo Pmax 38/S 42/M 48/L 53/XL
    A Seat tube length 380 420 480 530
    B Top tube length 575 590 610 630
    C Head tube angle 67,5° 68,5° 68,5° 68,5°
    D Seat tube angle 74° 74° 74° 74°
    E Head tube length 100 110 125 140
    F Chainstay length 465 465 465 465
    G Wheelbase 1146 1152 1173 1195
    H Bottom bracket drop 53 53 53 53
    I Fork length 511 511 511 511
    K Fork offset (rake) 51 51 51 51
    L Fork travel 100 100 100 100
    M Stand over height 725 743 776 805
    N Travel (Frame) 0 0 0 0
    S Stack 598 612 626 640
    R Reach 404 414 430 446
    STR* Stack to Reach 1,48 1,48 1,45 1,43

    All lengths in mm
    *STR: The higher the number, the more upright is the seating position.
