Chenoa 365 :e
Lightweight and powerful: The CHENOA 365 :e defines modern urban e-biking with the latest generation of the powerful Bosch drive unit. Thanks to its light-weight carbon frame, it comes with a low weight but still offers safety features such as ABS, high comfort and SIMPLON-typical flexibility.
Urban e-biking, light and easy
The CHENOA 365 :e combines state-of-the-art technology, convenient handling and thoughtful design. It is a modern urban e-bike that fulfills all wishes in everyday life and on longer rides. Thanks to its high-grade carbon frame, the CHENOA 365 :e is comparatively light – despite its powerful motor. The externally mounted battery is particularly easy to remove and is available in three different capacity levels on our bike configurator. As one of the most powerful drives on the market, the new fifth-generation Bosch Performance Line CX provides reliable acceleration, while the optional ABS system ensures a high degree of safety. The configurations can be customized to suit different rider types. Typical CHENOA, typical SIMPLON.
Facts & Figures
| Max. Weight (Bike + Rider + Gear) | 125 kg |
|---|---|
| FORK TRAVEL / LENGTH / OFFSET | 0 / 460 / 51 mm |
| Axle Standard Frame | 148 x 12 mm |
| THRU-AXLE | 178 mm x M12 x 1.0 |
| Front Axle | 110 x 15 mm |
| Max. Tire Dimension | ETRTO: 54 - 622 Inch: 29 x 2.10 |
| Max. Brake Rotor Size | 203 mm |
| Brake Mount | PM7 |
| Seat Post Diameter | 31,6 mm |
| Headset Standard | ZS56 / ZS56 |
| Headset | ACROS AZA636 |
| Max. Chainring Size | 48 Teeth; Chainline 55 mm |
| DERAILLEUR HANGER | SIMPLON |
| Water Bottle Mounts | 1 |
| MOTOR | Bosch Performance Line / Bosch Performance Line PX |
| Max. Support Level | 340 % / 340 (400) % |
| Max. Torque | 75 Nm / 85 (90) Nm |
| Max. Power | 600 Watt / 600 (700) Watt |
| Battery Capacity | 400 / 545 / 800 Wh |
| RANGE EXTENDER | - |
| Charge on Bike | Yes |
| Removable Battery | Yes |
| Child Trailer Readiness | Yes |
| Kickstand Compatible | KSA18 |

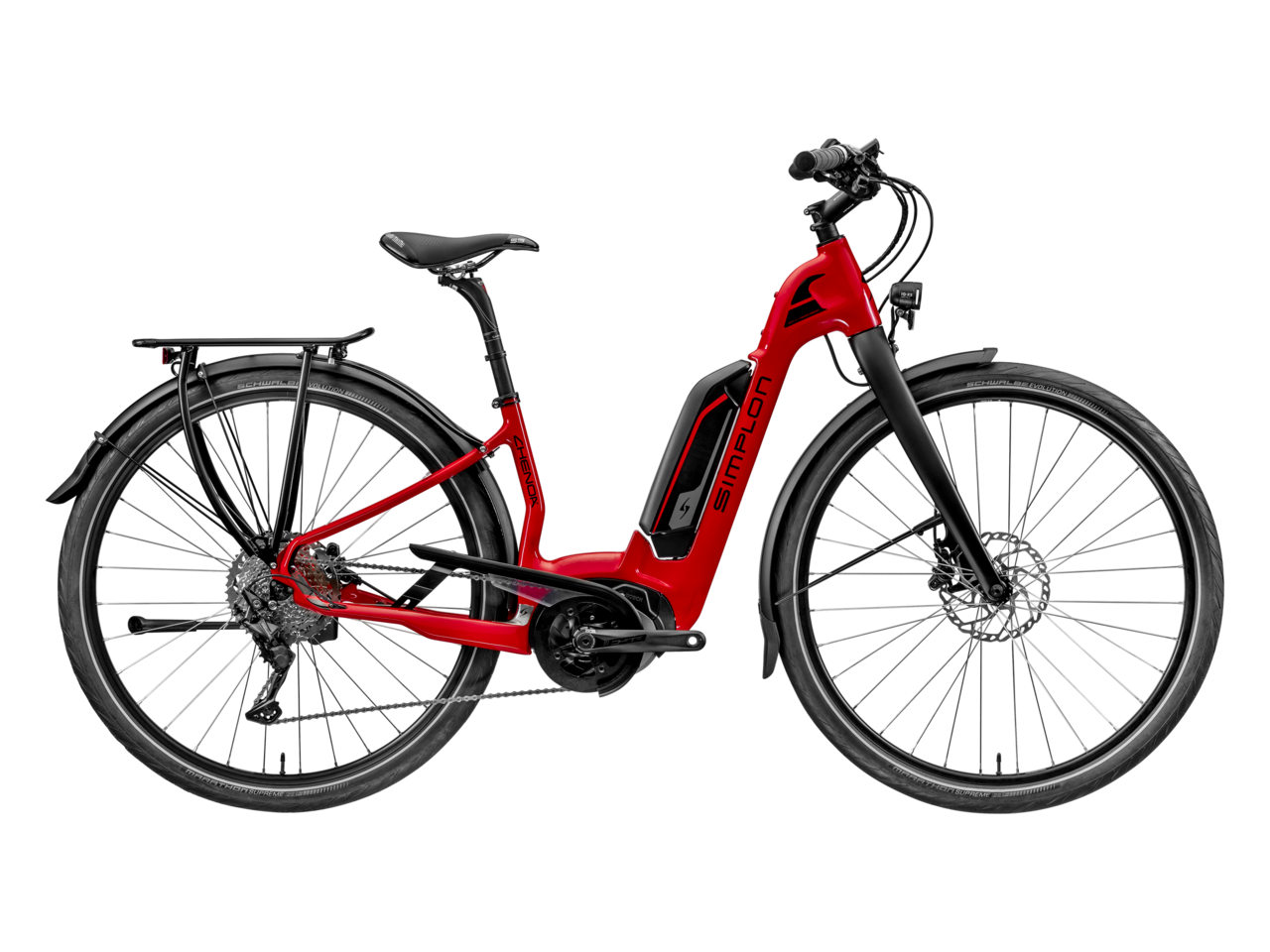

| The illustration above is an example. We reserve the right, provided that the type, suitability and purpose of the bicycle are not impaired, to replace individual parts with components of equal or higher value so that the bicycle is delivered differently. |
Bike classification: ASTM category 2
Learn more (PDF)
 |
|
Geometry
The geometry table will help you find the perfect frame size.
| 41/S | 47/M | 54/L | ||
|---|---|---|---|---|
| A | Seat tube length | 410 | 470 | 540 |
| B | Top tube horizontal | 585 | 600 | 615 |
| C | Head tube angle | 69° | 69° | 69° |
| D | Seat tube angle | 73° | 73° | 73° |
| E | Head tube length | 150 | 165 | 180 |
| F | Chainstay length | 465 | 465 | 465 |
| G | Wheelbase | 1119 | 1135 | 1151 |
| H | Bottom bracket drop | 75 | 75 | 75 |
| I | Fork length | 460 | 460 | 460 |
| K | Fork offset | 51 | 51 | 51 |
| M | Stepthrough | 390 | 390 | 390 |
| S | Stack | 626 | 640 | 654 |
| R | Reach | 394 | 404 | 415 |
| STR* | Stack to Reach | 1,59 | 1,58 | 1,58 |
All lengths in mm
* STR: Higher number indicates more upright sitting posture
Trailer which are mounted on the rear wheel are allowed for this model.
