Array

Array

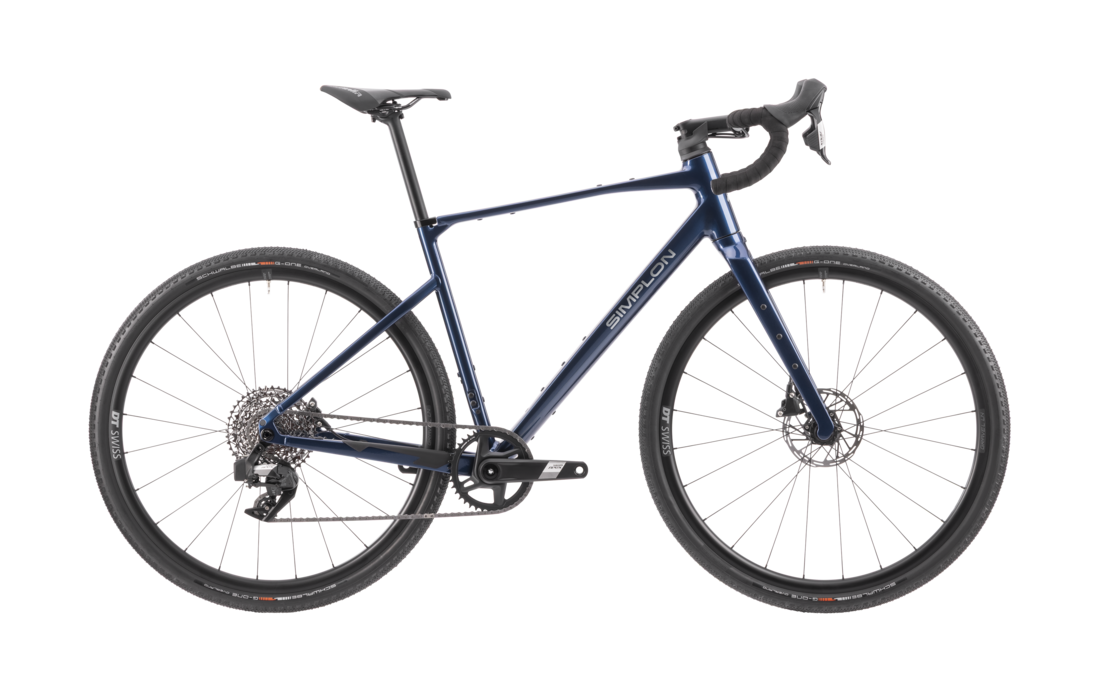

Versatile, robust and ready for long days in the saddle: the ARRAY is an aluminium gravel bike with 50 mm tyre clearance, a comfortable carbon fork and 17 mounting points for luggage and accessories. Built for gravel riding, long tours and the daily commute.

from
€ 1,999.00
from
CHF 1,999.00
Lightweight
3 from 6
Performance
4 from 6
Touring
6 from 6
Commuting
5 from 6
Find a Dealer
Ready for every kilometre ahead.
Frame material
Aluminium
Frame weight
1950 g (M)
System weight (bike + load)
130 kg
Fork travel
40 mm (optional)
Tire clearance
50 mm (without mudguards)
Total bike weight
from 10,05 kg
    Array
    Configure Bike
    Find a Dealer
    Room for adventure

    With 17 mounting points, luggage and gear can be attached flexibly. The ARRAY is also available with a full equipment option.
    More room for gravel

    Up to 50 mm tyre clearance provides added comfort, grip and control on gravel, forest roads and rough terrain.
    Modern look with clean lines

    The aluminium frame in a carbon look, internally routed cables and smoothly finished transitions at the head tube create a clean, uncluttered appearance.
    Less weight, more comfort

    The carbon fork reliably filters vibrations and reduces weight at the front. This results in calmer steering and greater comfort on long rides and rough terrain.
    Built for rough terrain

    The standard 45 mm tires ensure stability and comfort on gravel, while an optional suspension fork further extends the bike’s versatility.
    Versatile setup

    The ARRAY is designed for both 1x and 2x drivetrains. The integrated SRAM UDH ensures precise shifting and simplifies service and spare part availability.

    CORE SELECTION: quick availability, short waiting times, start riding immediately

    The CORE Line offers pre-configured focus models at fixed prices, put together by developers, experts, and athletes.

    Strong on the long run. Strong in everyday use.

    The ARRAY feels at home wherever routes begin to change. It rolls smoothly and efficiently on tarmac, stays calm and controlled on gravel, and offers confidence when the surface gets rougher. The aluminium frame delivers exactly the robustness you want outdoors, without feeling heavy or sluggish. Add to that the lightweight carbon fork, which noticeably smooths out bumps and makes long rides more comfortable – optionally also available with a suspension fork for even more comfort.

    With 45 mm tyres and plenty of mounting points, the ARRAY is ready for whatever your ride has in store. Bikepacking bags, luggage for long gravel tours or just the essentials for everyday riding – the bike adapts to your plans, not the other way around. Built for riders who prefer to leave the road behind and keep their options open.



    GeometrY

    The geometry table will help you find the perfect frame size.

    sr.Table Scrollable
    Grid 45/XS 49/S 53/M 57/L 62/XL
    A Seat tube length 430 465 500 535 570
    B Top tube horizontal 535 550 570 585 605
    C Head tube angle 70° 70° 70° 70° 70°
    D Seat tube angle 74° 74° 74° 74° 74°
    E Head tube length 115 135 160 180 200
    F Chainstay length 430 430 430 435 435
    G Wheelbase 1025 1042 1063 1085 1106
    H Bottom bracket drop 75 75 75 75 75
    I Fork length 415 415 415 415 415
    K Fork offset 48 48 48 48 48
    M Standover 725 762 788 818 847
    R Reach 375 385 398 408 422
    S Stack 557 575 599 618 636
    STR * Stack to Reach 1,48 1,49 1,5 1,51 1,51
    S+ Stack+
    R+ Reach+
    STR+ Stack to Reach+
    U Steam angle -12° -12° -12° -12° -12°
    V Stem length 70 70 80 80 80

    All lengths in mm
    * STR: Higher number indicates more upright sitting posture

    Dealer Search

    Are you looking for a SIMPLON dealer near you? Use our dealer search - with a few clicks you will get to the SIMPLON dealer of your choice!

    Search now

    Facts & Figures

    Technical details
    MAX. weight (bike + rider + GEar) 130 kg
    FORK TRAVEL / LENGTH / OFFSET 0 / 415 / 48 mm
    AXLE STANDARD FRAME 142 x 12 mm
    THRU-AXLE 172 x M12 x 1.0 mm
    Fork installation dimensions 100 x 12 mm
    MAX. tire dimension ETRTO: 45-622 (without mudguard) / Inch: 28 x 1.70
    MAX. brake rotor size 180 mm
    brake mount FM160
    seat tube diameter 27,2 mm
    headset standard ZS56 / ZS56
    Headset ACROS AZA636
    MAX. chainring size 2x: 48T / 34T | 1x: 46T
    DERAILLEUR HANGER UDH
    water bottle mounts 2
    CHILD TRAILER READINESS No
    COMPATIBILITY BIKE RACK KSA18
    The illustration above is an example. We reserve the right, provided that the type, suitability and purpose of the bicycle are not impaired, to replace individual parts with components of equal or higher value so that the bicycle is delivered differently.
    Intended use

    Bike classification: ASTM category 2
    Learn more (PDF)

    • Bicycles and e-bikes that are used on unpaved roads, gravel roads, forest roads and light trails (S0) with moderate ascents and descents in addition to category 1 use. Under such conditions, contact with bumpy terrain and repeated loss of tire contact with the ground may occur. Jumps and drops are limited to 15 cm or less.
    • Jumps & drops: ≤ 15 cm
    • Skills: moderate riding technique required
    • Bike type: Trekking Bike, Gravel Bike
