Chenoa Max
This bike is no longer available in the online configurator – but no worries! There might still be one at one of our dealers. Best to ask them directly!

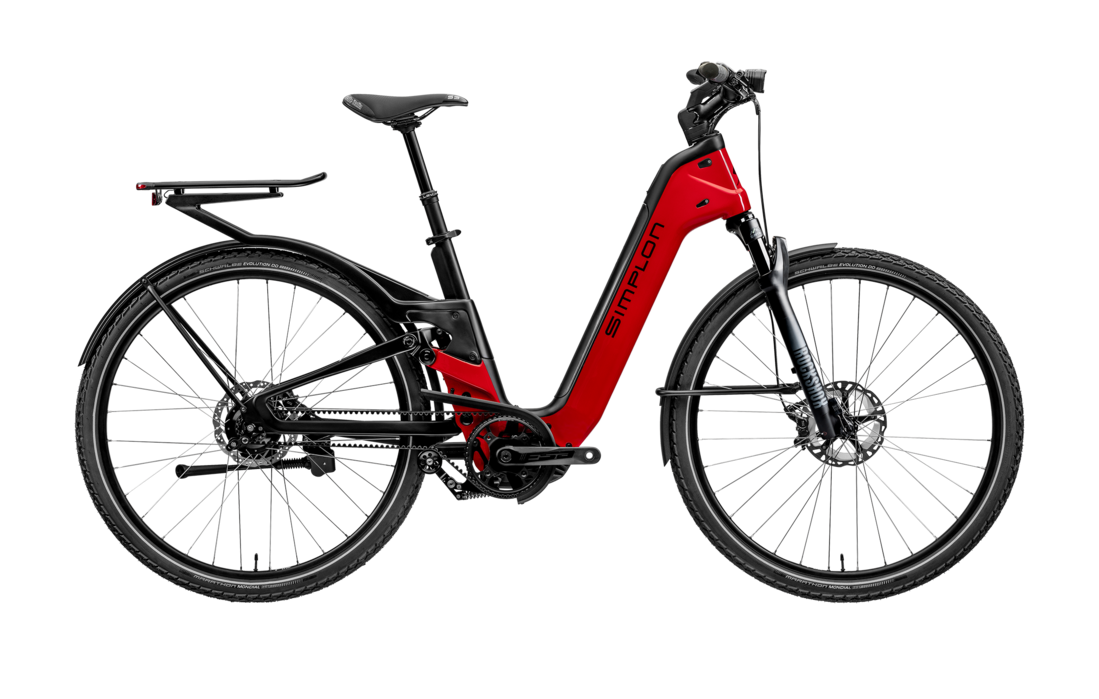

The feel good e-bike! The CHENOA MAX sets standards in comfort and safety. Its low step-through combined with the full-suspension chassis ensures a comfortable and happy ride – touring couldn’t be more enjoyable. The suspension improves tyre traction and makes the CHENOA MAX perform very well off paved roads. The lightweight carbon frame with integrated luggage rack complete the bike and offers a unique package unrivalled on the market.
Your reliable companion
A perfect symbiosis: full suspension and electric support. How comfortable it is to tour on the CHENOA MAX becomes especially apparent on mountain trails or gravel roads. Thanks to full suspension, potholes are hardly noticeable, and the shocks skilfully compensate for any unevenness in the ground. The power comes from the fourth-generation Bosch Performance Line CX drive unit.
Whether you're going on a cycling holiday, taking a trip on the weekend, or biking to work: The CHENOA MAX is suitable for every endeavour and ready for any adventure. If you have a keen eye for aesthetics, you will enjoy the unique luggage rack design, which blends in beautifully with the overall appearance of the e-bike.
Facts & Figures
| Max. Weight (Bike + Rider + Gear) | 125 kg |
|---|---|
| Fork Travel / Length / Offset | 65 / 477 / 46 mm |
| Rear Axle / Thru-Axle Length / Thread Pitch | 148 x 12 mm/ 172 x M12 x 1.0 mm |
| Front Axle | 110 x 15 mm |
| Max. Tire Dimension | ETRTO: 57-622 / Inches: 29 x 2.25 |
| Max. Brake Rotor Size | 203 mm |
| Brake Mount | PM7 |
| Seat Post Diameter | 31,6 mm |
| Headset Standard | AZA-642 |
| Max. Chainring Size | 38 Teeth; Chainline 50 mm |
| UDH DERAILLEUR HANGER | No |
| Water Bottle Mounts | 1 |
| Max. Water Bottle Size | 750ml with adapter |
| MOTOR | Bosch Performance Line CX |
| Max. Support Level | 340% |
| Max. Torque | 85 Nm |
| Max. Power | 600 Watt |
| Battery Capacity | 625 Wh |
| RANGE EXTENDER | - |
| Charge on Bike | Yes |
| Removable Battery | Yes |
| Child Trailer Readiness | Yes |
| Kickstand Compatible | KSA 40 |
| The illustration above is an example. We reserve the right, provided that the type, suitability and purpose of the bicycle are not impaired, to replace individual parts with components of equal or higher value so that the bicycle is delivered differently. |
The extremely lightweight frame of the CHENOA MAX is the result of a high-pressure carbon moulding process. The e-bike also boasts numerous technical highlights: For a clean look and improved protection of the cables, they were routed internally through the frame. Good to know for adventurers who are planning longer tours or those who are travelling with children: The e-bike is trailer-ready thanks to a special adapter.
Bike classification: ASTM category 3
Learn more (PDF)
 |
|
Geometry
The geometry table will help you find the perfect frame size.
| Chenoa Max Uni | 40/S | 47/M | 54/L | |
|---|---|---|---|---|
| A | Seat tube length | 400 | 470 | 540 |
| B | Top tube length | 606 | 616 | 631 |
| C | Head tube angle | 68,5 | 68,5 | 68,5 |
| D | Seat tube angle | 72,5 | 72,5 | 72,5 |
| E | Head tube length | 150 | 165 | 180 |
| F | Chainstay length | 522 | 522 | 522 |
| G | Wheelbase | 1199 | 1210 | 1226 |
| H | Bottom bracket drop | 61,1 | 61,1 | 61,1 |
| I | Fork length | 478,5 | 478,5 | 478,5 |
| K | Fork offset (rake) | 44 | 44 | 44 |
| M | Step-through height | 385 | 395 | 385 |
| S | Stack | 628 | 641 | 655 |
| R | Reach | 408 | 414 | 424 |
| STR* | 1,54 | 1,55 | 1,54 | |
All lengths in mm
*STR: The higher the number, the more upright is the seating position.
Trailer which are mounted on the rear wheel are allowed for this model.
