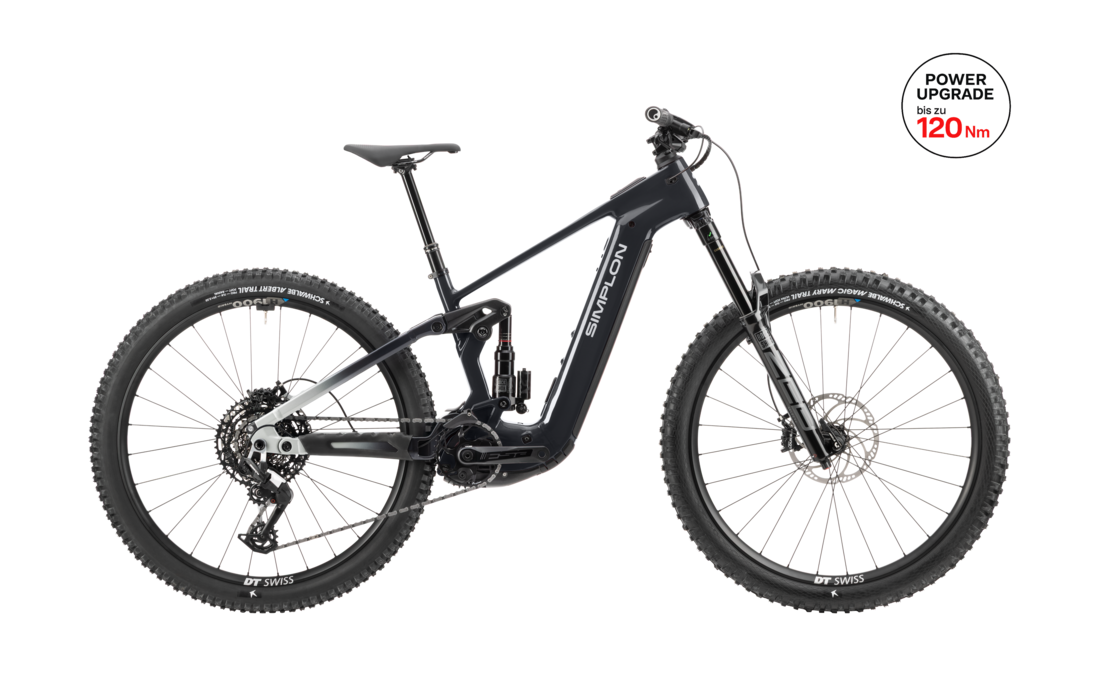

Rapcon AL :e

Robust aluminium e-enduro for demanding terrain, built for all-mountain and enduro riding. The RAPCON AL:e pairs 160 mm of suspension travel with the BOSCH Performance Line CX Gen5. A modern e-MTB geometry, mullet option via flip chip, and a system weight rating of up to 150 kg deliver control, agility and reliability on climbs and descents alike.

from

€ 5,499.00

from

CHF 5,499.00

Touring

Trail

All Mountain

Enduro

E-Power

Print

Prices in EUR

Prices in CHF

print technologies and options

print geometry table

Find a Dealer

Performance for everyone.

Frame material

Aluminium

Max. system weight (bike + load)

150 kg

Travel (rear/front)

160 mm / 160 mm

Motor

BOSCH PL CX Gen5

Battery

600 / 800 Wh

Total bike weight

from 26,0 kg

Rapcon AL :e

Configure Bike

Find a Dealer

Battery out in seconds

The 800 Wh battery can be removed easily via the battery hatch. It is a rare feature on today’s e-MTBs and gives you maximum flexibility for charging and everyday use.

Clear view, no distractions

Easy control via the remote, clear information on the 2-inch Kiox 400c display in the top tube (in the Expert and Ultimate packages).

Smooth when things get rough

The efficient 4-bar rear end and the 38 mm forks across all packages deliver comfort, support and a planted feel – no matter how rough the trail gets.

A real eye-catcher

The exclusive gravity casting manufacturing process enables a three-piece aluminium main frame: high-quality look and stable handling.

Cable routing that saves time

External cable routing simplifies servicing. Optionally, the cables can be routed internally through the headset for an even cleaner cockpit.

All-Mountain at its best

With a 77.5° seat angle, a 64° head angle and 160 mm of travel, the bike stays agile, confident and precise, even when the trail gets demanding.

CORE SELECTION: quick availability, short waiting times, start riding immediately

The CORE Line offers pre-configured focus models at fixed prices, put together by developers, experts, and athletes.

Robust. Elegant. Enduring.

The RAPCON AL:e is aimed at riders who take their e-MTB into terrain where technique, line choice and real reserves matter. Long climbs, demanding descents, rock-strewn sections. And often more vertical metres than originally planned.
The aluminium frame combines durability with the elegant silhouette of its carbon counterpart, delivering confidence precisely where trails turn fast, steep or unpredictable. The RAPCON AL:e is not a bike for gentle use. It is built to be pushed to its limits.
To ensure the ride does not end before the summit, this e-enduro features a flexible battery concept. Choose between 600 or 800 Wh to match your riding style, agile or long-range. For particularly long days, the range extender can be integrated in every frame size, unlocking distances that take the pressure out of big alpine missions. That is exactly what the RAPCON AL:e is made for: rides that end when you decide, not when the battery does.

Daten & Fakten

Technical details

MAX. weight (bike + rider + gear)	150 kg
fork travel / length / OFFSET	160/576/44 mm
shock size (eye to eye length X HUB)	205 x 62,5 mm
lower shock hardware	Trunnion
upper shock hardware	8 x 30 mm
Rear Axle	148 x 12 mm
Thru-Axle	200 x M12 x 1.0 mm
Front Axle Standard	110 x 15 mm
MAX. TIRE DIMENSION	ETRTO: 65-622 / Zoll: 29 x 2.60
MAX. BRAKE ROTOR SIZE	220 mm
brake mount	PM7
SEAT POST DIAMETER	31,6 mm
HEADSET STANDARD	ZS56/ZS66
Headset	ACROS AZA-639
MAX. CHAINRING SIZE	36T
UDH DERAILLEUR HANGER	UDH
WATER BOTTLE MOUNTS	1
MOTOR	Bosch Performance Line CX / PX
MAX. SUPPORT LEVEL	340 % \| 400 %
MAX. TORQUE	85 (100) Nm
MAX. power	600 (750) Watt
Battery capacity	600 Wh \| 800 Wh
RANGE EXTENDER	250 Wh
CHARGE ON BIKE	Yes
REMOVABLE BATTERY	Yes
CHILD TRAILER READINESS	Yes
KICKSTAND COMPATIBLE	KSA18
	The illustration above is an example. We reserve the right, provided that the type, suitability and purpose of the bicycle are not impaired, to replace individual parts with components of equal or higher value so that the bicycle is delivered differently.

Intended use

Bike classification: ASTM category 4
Learn more (PDF)

Bicycles and e-bikes which, in addition to being used in categories 1, 2 and 3, are also used on off-road tracks and challenging trails (S3+) as well as on difficult terrain, at speeds below 40 km/h, and which require a high level of technical skill.Jumps and drops are limited to 120 cm.
Jumps & drops: ≤ 120 cm
Skills: technical skills, practice & good bike control required
Bike type: All Mountain Bike, Enduro Bike

DEALER SEARCH

With a few clicks you will get to the SIMPLON dealer of your choice!

Search now

Geometry

The geometry table will help you find the perfect frame size.

		S	M	L	XL
A	Seat tube length	400	420	440	460
B	Top tube horizontal	573	598	619	644
C	Head tube angle	64°	64°	64°	64°
D	Seat tube angle*	77,5°	77,5°	77,5°	77,5°
D1	Seat tube angle	72,2°	72,2°	72,2°	72,2°
D2	Rail height	665	705	750	795
E	Head tube length	116	129	136	146
F	Chainstay length	446	446	446	446
G	Wheelbase	1232	1264	1276	1301
H	Bottom bracket drop**	25	25	25	25
I	Fork length	576	576	576	576
K	Fork offset	44	44	44	44
M	Standover	749	761	761	753
R	Reach	438	460	480	500
S	Stack	627	638	646	655
STR	Stack to Reach***	1,43	1,39	1,35	1,31

All lengths in mm

* The effective seat angle (D) indicates the actual sitting position on the bike, measured at a reference height (D2). Due to the offset of the seat tube in relation to the bottom bracket, the effective seat angle (D) does not correspond to the seat tube angle (D1). The effective seat angle (D) is therefore calculated from the intersection of the straight line, starting from the bottom bracket, with the height of the saddle rail (D2). The height of the saddle rail (D2) corresponds to typical reference sizes for the respective frame sizes.

** Left BB Drop with 29“ front and rear with Flipchip low, right BB Drop when 29“ in front and 27,5“ in rear with flip chip high

*** STR: Higher number indicates more upright sitting posture
