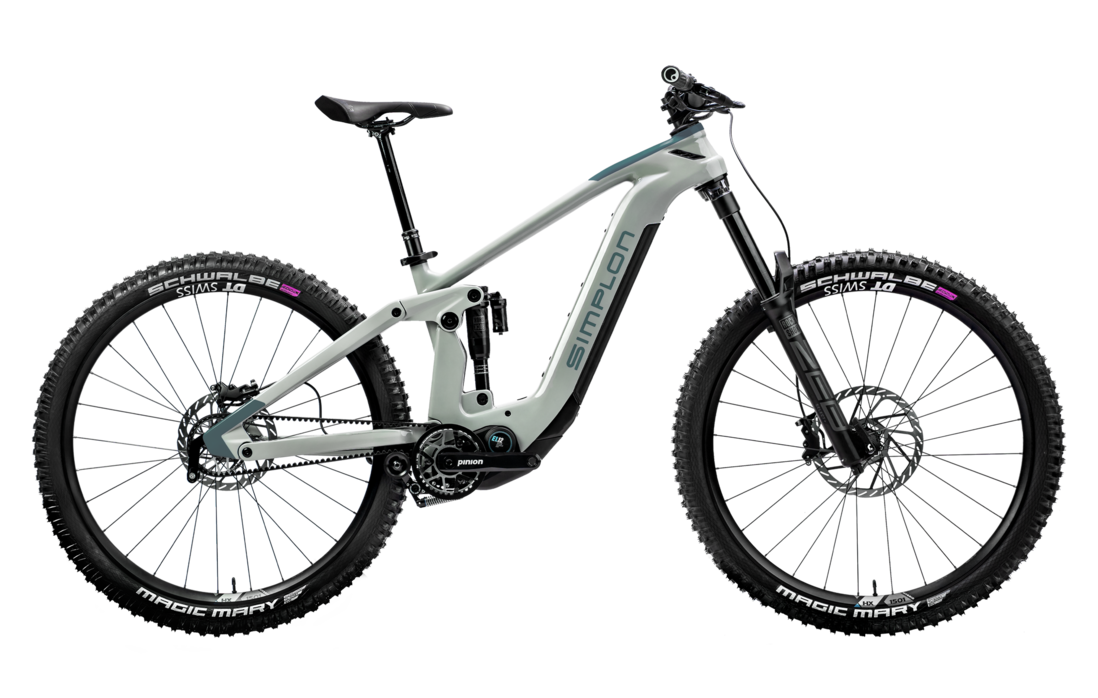

The future is now! The RAPCON :ePinion marks the beginning of a new era of E-MTBs and outshines everything that has come before. The revolutionary PINION drive combines motor and gearbox in one housing and makes vulnerable derailleurs obsolete. The centre of gravity of this system is more central than ever. In combination with the selectable chassis with Mullet option and 160/170 or 160/160 mm travel, this results in unbeatable riding performance. The flexible battery range with up to 1495 Wh transforms the bike into an enduring climber.
THE INNOVATIVE TRAIL/ENDURO E-BIKE FOR THE HIGHEST DEMANDS
You want a versatile e-MTB for trail and enduro with a trendsetting drivetrain? Then the RAPCON :ePinion is your bike. With Pinion's innovative E-Drive System and the geometry adapted to it, we have improved the versatile riding characteristics of the RAPCON PMAX even further. Reduced to a single component, the 12-speed drivetrain with stress-free belt guarantees reliable operation at the highest level and the necessary reliability to get you further on the trail.
Speaking of distances: batteries with a capacity of at least 720 Wh can be installed in the frame of the RAPCON :ePinion. With an additional range extender, a maximum battery capacity of an outstanding 1495 Wh is possible for epically long tours and enduring summit storms.
GeometrY
The geometry table will help you find the perfect frame size.
| S | M | L | XL | ||
|---|---|---|---|---|---|
| A | Seat tube length | 395 | 400 | 420 | 445 |
| B | Top tube horizontal | 552 | 584 | 606 | 627 |
| C | Head tube angle | 64,2° | 64,2° | 64,2° | 64,2° |
| D | Seat tube angle* | 78,7° | 78,7° | 78,7° | 78,7° |
| D1 | Seat tube angle | 75,3° | 75,4° | 75,3° | 75,3° |
| D2 | Rail height | 595 | 600 | 620 | 645 |
| E | Head tube length | 108 | 108 | 118 | 126 |
| F | Chainstay length | 447 | 447 | 447 | 447 |
| G | Wheelbase | 1210 | 1244 | 1269 | 1302 |
| H | 25,5 | 25,5 | 25,5 | 25,5 | |
| I | Fork length | 593 | 593 | 593 | 593 |
| K | Fork offset | 44 | 44 | 44 | 44 |
| M | Standover | 743 | 745 | 746 | 746 |
| R | Reach | 424 | 455 | 475 | 495 |
| S | Stack | 628 | 633 | 643 | 670 |
| STR | Stack to Reach*** | 1,48 | 1,39 | 1,35 | 1,35 |
All lengths in mm
* The effective seat angle (D) indicates the actual sitting position on the bike, measured at a reference height (D2). Due to the offset of the seat tube in relation to the bottom bracket, the effective seat angle (D) does not correspond to the seat tube angle (D1). The effective seat angle (D) is therefore calculated from the intersection of the straight line, starting from the bottom bracket, with the height of the saddle rail (D2). The height of the saddle rail (D2) corresponds to typical reference sizes for the respective frame sizes.
** Left BB Drop with 29“ front and rear with Flipchip low, right BB Drop when 29“ in front and 27,5“ in rear with flip chip high
*** STR: Higher number indicates more upright sitting posture
| S | M | L | XL | ||
|---|---|---|---|---|---|
| A | Seat tube length | 395 | 400 | 420 | 445 |
| B | Top tube horizontal | 551 | 583 | 605 | 626 |
| C | Head tube angle | 64,6° | 64,6° | 64,6° | 64,6° |
| D | Seat tube angle* | 79,1° | 79,1° | 79,1° | 79,1° |
| D1 | Seat tube angle | 75,7° | 75,8° | 75,7° | 75,7° |
| D2 | Rail height | 595 | 600 | 620 | 645 |
| E | Head tube length | 108 | 108 | 118 | 126 |
| F | Chainstay length | 447 | 447 | 447 | 447 |
| G | Wheelbase | 1207 | 1241 | 1265 | 1293 |
| H | 29 | 29 | 29 | 29 | |
| I | Fork length | 583 | 583 | 583 | 583 |
| K | Fork offset | 44 | 44 | 44 | 44 |
| M | Standover | 740 | 742 | 743 | 743 |
| R | Reach | 430 | 461 | 481 | 501 |
| S | Stack | 624 | 629 | 639 | 656 |
| STR | Stack to Reach*** | 1,45 | 1,36 | 1,33 | 1,31 |
All lengths in mm
* The effective seat angle (D) indicates the actual sitting position on the bike, measured at a reference height (D2). Due to the offset of the seat tube in relation to the bottom bracket, the effective seat angle (D) does not correspond to the seat tube angle (D1). The effective seat angle (D) is therefore calculated from the intersection of the straight line, starting from the bottom bracket, with the height of the saddle rail (D2). The height of the saddle rail (D2) corresponds to typical reference sizes for the respective frame sizes.
** Left BB Drop with 29“ front and rear with Flipchip low, right BB Drop when 29“ in front and 27,5“ in rear with flip chip high
*** STR: Higher number indicates more upright sitting posture
COMPACT AND LOW MAINTENANCE. THE DRIVE SYSTEM FROM PINION
The Motor.Gearbox.Unit (MGU) from Pinion manages to merge a powerful, wear-free motor and electronic gear shifting into an innovative drive unit system, all under the same housing. The advantages are:
- The all-in-one Pinion MGU requires (apart from an oil change every 10.000 km) zero maintenance.
- Thanks to the long-lasting belt drive, there is no need for a chain and rear derailleur - two components that are constantly exposed to dirt and water. The advantage: significantly reduced service efforts.
- Without a rear derailleur and cassette, and with the central placement of the motor-gear unit in the bottom bracket area, the mass on the rear wheel shrinks to a minimum. The result: optimal weight distribution with balanced handling off-road.
-
The integrated gearbox enables uninterrupted shifting under full load. If desired, the Pinion MGU can change gears automatically.
You can find out more about the Pinion MGU and the other e-bike motor systems we use in this magazine article.
Facts & Figures
| MAX. WEIGHT (BIKE+ RIDER + GEAR) | 140 kg |
|---|---|
| fork travel / length / OFFSET | 160/571/44 mm I 170 / 586 / 44 mm |
| shock size (EYE TO EYE LENGTH X STROKE) | 205 x 62,5 mm |
| UPPER SHOCK HARDWARE | Trunnion |
| LOWER SHOCK HARDWARE | 10 x 40 mm |
| REAR AXLE / THRU-AXLE LENGTH / THREAD PITCH | 148 x 12 mm |
| Thru-Axle | 172 x M12 x 1.0 mm |
| FRONT AXLE | 110 x 15 mm |
| MAX. TIRE DIMENSION | ETRTO: 65-622 / Inches: 29*2.60 |
| MAX. BRAKE ROTOR SIZE | 220 mm |
| brake mount | PM7 |
| SEAT POST DIAMETER | 31,6 mm |
| HEADSET STANDARD | ZS56/ZS66 |
| Headset | ACROS AZA-639 |
| MAX. CHAINRING SIZE | 39 Teeth |
| UDH DERAILLEUR HANGER | No |
| WATER BOTTLE MOUNTS | 1 |
| MOTOR | Pinion MGU E1.12 |
| MAX. SUPPORT LEVEL | 400 % |
| MAX. TORQUE | 85 Nm |
| MAX. power | 600 Watt |
| Battery capacity | 720 / 800 / 1060* Wh (*only frame size L, XL) |
| RANGE EXTENDER | - |
| CHARGE ON BIKE | Yes |
| REMOVABLE BATTERY | Yes |
| CHILD TRAILER READINESS | No |
| KICKSTAND COMPATIBLE | No |
| The illustration above is an example. We reserve the right, provided that the type, suitability and purpose of the bicycle are not impaired, to replace individual parts with components of equal or higher value so that the bicycle is delivered differently. |
Bike classification: ASTM category 4
Learn more (PDF)
 |
|
