Steamer Pmax

Steamer Pmax

This bike is no longer available in the online configurator!

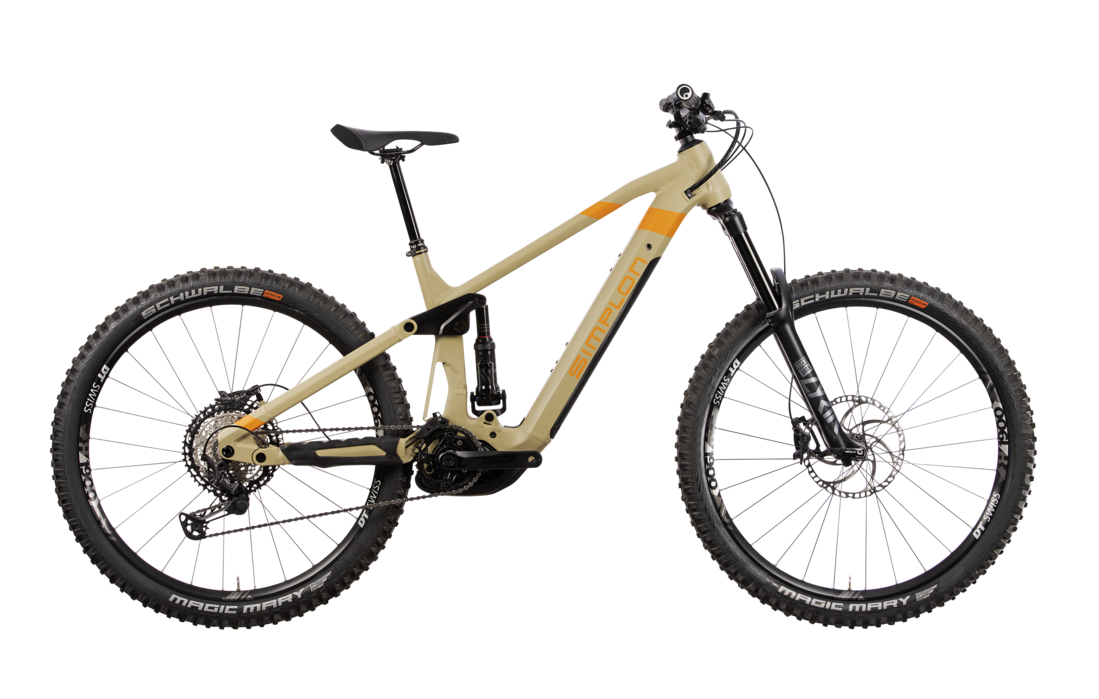

The STEAMER PMAX is the robust partner for every trail adventure. Highspeed descents with tricky sections as well as trail uphills are its core discipline. But even in moderate terrain the powerful chassis with optional Mullet wheels offers plenty of comfort and safety. The STREAMER PMAX can be used as a trail bike with 150 / 150 mm or enduro with 170 / 165 mm of travel. The necessary boost is provided by the Bosch drive with up to 1125 Wh battery power. Enough energy for several mountain peaks in a row. Tour planning is a thing of the past, with the STEAMER PMAX you just ride wherever you like.

from
€ 4,899.00
from
CHF 4,899.00
Touring
from 6
Cross Country
0 from 6
Trail
6 from 6
Enduro
6 from 6
Robust E-MTB for demanding terrain.
Weight assembled bike
from 26,0 kg
Frame material
Aluminium
Travel
150/150 mm | 170/165 mm
Wheel size
29 in| 29/27,5 in (mullet option)
Motor
Bosch Performance CX
Battery
625 Wh | optional: +250 Wh
    Steamer Pmax
    Convenient Storage Box

    The low-positioned seat and top tube and the long Vario posts offer maximum freedom of movement. Behind the seat tube, there’s enough space in the Storage Box for a spare inner tube, tools and more.

    Smart Headset

    No tangled mess of cables and better protection thanks to the harmonious integration of the cables.

    Quickly adapted geometry

    The geometry of the Steamer Pmax can be adapted to the respective wheel size by means of a Flip Chip. Riders can select between a suspension travel of 150 mm and 170 mm.

    E-TRAILBIKE WITH ENDURO SKILLS

    Simply get on and conquer multiple summits on one tour! For ambitious trail bikers who like to benefit from electric support, there is no way around the Steamer Pmax. Thanks to its enduro capabilities, it doesn't shy away from even the most challenging trails. Riders can conserve valuable energy by relying on the support of the latest-version Bosch Performance Line CX. The drive unit is housed in the sturdy aluminium frame, which offers reliable, robust protection against damage from external influences.

    The model is available either with 29-inch wheels or as a Mullet version with a 27.5-inch rear wheel and a 29-inch front wheel. As with the wheels, there are also two colour options to choose from.

    features

    features
    Extreme range

    In addition to the internal 625 Wh battery, an external 500 Wh battery can be mounted on the down tube. The bottom line is that 1125 Wh provide an enormous capacity, which guarantees untiring support even for very long rides. If the external battery is not required, a bottle cage can be comfortably clicked in and out via an adapter instead.

    Geometry

    The geometry table will help you find the perfect frame size. If you are unsure, our experts will be happy to help you with a free online consultation.

    sr.Table Scrollable
    Steamer Pmax 150/156 38,5/S 41/M 43,5/L 46/XL
    A Seat tube length 385 410 435 460
    B Top tube length 569 596 623 645
    C Head tube angle 64,7 64,7 64,7 64,7
    D Seat tube angle 79 79 79 79
    E Head tube length 108 116 128 139
    F Chainstay length 448 448 448 448
    G Wheelbase 1223 1255 1285 1310
    H** Bottom bracket drop 31 31 31 31
    I Fork length 566 566 566 566
    K Fork offset (rake) 44 44 44 44
    L Fork travel 150 150 150 150
    M Stand over height 758 758 758 758
    N Travel (Frame) 150 150 150 150
    S Stack 620 627 638 647
    R Reach 454 479 504 524
    STR* Stack to Reach 1,37 1,31 1,27 1,23

    All lengths in mm
    *STR: The higher the number, the more upright is the seating position.
    **Left BB Drop with 29“ front and rear with Flipchip low, right BB Drop when 29“ in front and 27,5“ in rear with flip chip high

    sr.Table Scrollable
    Steamer Pmax 170/166 38,5/S 41/M 43,5/L 46/XL
    A Seat tube length 385 410 435 460
    B Top tube length 571 598 625 647
    C Head tube angle 63,9 63,9 63,9 63,9
    D Seat tube angle 78 78 78 78
    E Head tube length 108 116 128 139
    F Chainstay length 448 448 448 448
    G Wheelbase 1235 1264 1294 1319
    H** Bottom bracket drop 24 24 24 24
    I Fork length 586 586 586 586
    K Fork offset (rake) 44 44 44 44
    L Fork travel 170 170 170 170
    M Stand over height 766 766 766 766
    N Travel (frame) 166 166 166 166
    S Stack 628 635 646 656
    R Reach 443 468 493 513
    STR* Stack to Reach 1,42 1,36 1,31 1,28

    All lengths in mm
    *STR: The higher the number, the more upright is the seating position.
    **Left BB Drop with 29“ front and rear with Flipchip low, right BB Drop when 29“ in front and 27,5“ in rear with flip chip high

    Facts & Figures

    Technical details
    MAX. weight (bike + rider + gear) 140 kg
    fork travel / length / OFFSET 150 / 561 / 44 + 170 / 586 /44 mm
    shock size (eye to eye length X HUB) 205 x 65 / 205 x 60 mm
    upper shock hardware 10 x 40 mm (10mm offset)
    lower shock hardware Trunnion
    REAR AXLE / THRu-AXLE LENGth / THREAD PITCH 148 x 12 mm / 172 x M12 x 1.0 mm
    front axle 110 x 15 mm
    MAX. tire dimension ETRTO: 65-622 / Inches: 29*2.60
    MAX. brake rotor size 220 mm
    brakemount PM7
    seat post diameter 31,6 mm
    headsetstandard AZA-639
    MAX. chainring size 34 Teeth
    UDH DERAILLEUR HANGER Yes
    water bottle mounts 1
    MAX. water bottle size 500-750ml Configuration Dependent
    MOTOR Bosch Performance Line CX
    MAX. support level 340%
    MAX. torque 85 Nm
    MAX. power 600 Watt
    battery capacity 625 Wh
    RANGE EXTENDER 250 Wh
    charge on bike Yes
    removable battery Yes
    child trailer readiness No
    kickstand compatible No
    technologies

    Thanks to Advanced Internal Cable Routing, all cables are routed internally through the frame, which gives the bike a clean look and protects the cables. For more stiffness at the main bearing, Double Bearing technology is used. Another core element is the hydroformed aluminium frame, in which the battery is beautifully and safely housed. The Rock Guard made of impact-resistant ABS plastic protects the drive unit from damage caused by rocks and dirt.

    Intended use

    Bike classification: ASTM category 4

    • Bicycles and e-bikes which, in addition to being used in categories 1, 2 and 3, are also used on off-road tracks and challenging trails (S3+) as well as on difficult terrain, at speeds below 40 km/h, and which require a high level of technical skill.Jumps and drops are limited to 120 cm.
    • Jumps & drops: ≤ 120 cm
    • Skills: technical skills, practice & good bike control required
    • Bike type: All Mountain Bike, Enduro Bike
